13. Query

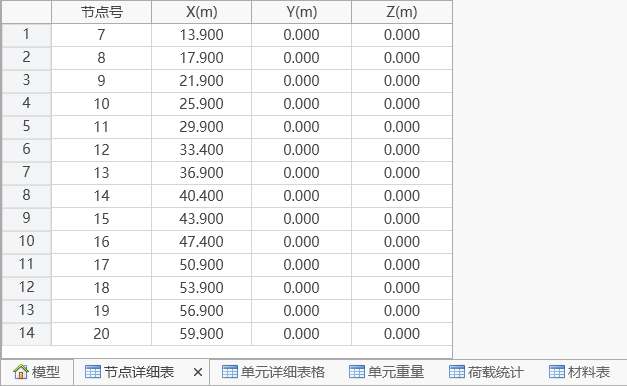

13.1 Node Detail Table​

  • Function: View detail table of selected nodes (editable).
  • Command: Query > Node Detail Table.

Node Detail Table Node Detail Table

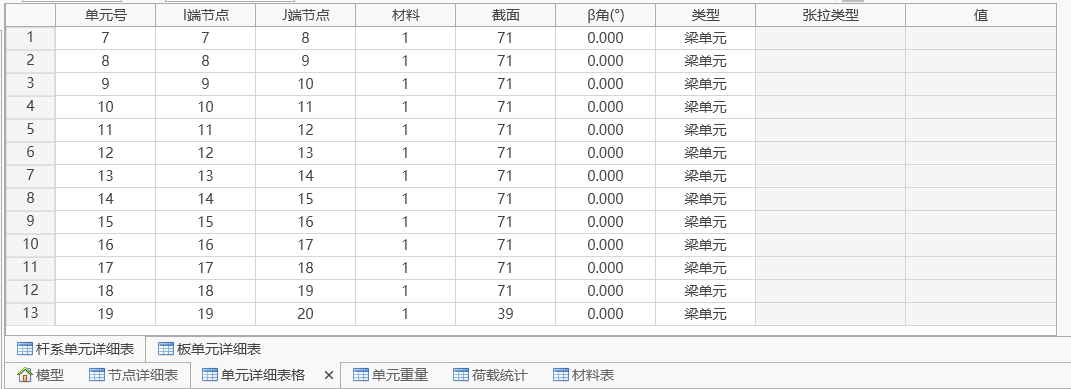

13.2 Element Detail Table​

Function: View detail table of selected elements (editable).

Command: Query > Element Detail Table.

Element Detail Table Element Detail Table

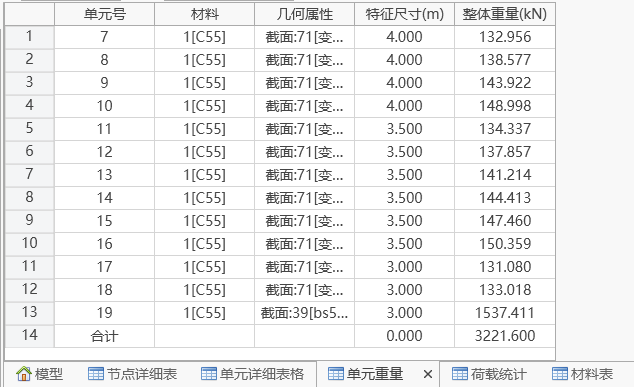

13.3 Element Weight Table​

Function: View weight table of selected elements (including materials, sections, characteristic dimensions, total weight), and obtain total overall weight.

Command: Query > Element Weight Table.

Element Weight Table Element Weight Table

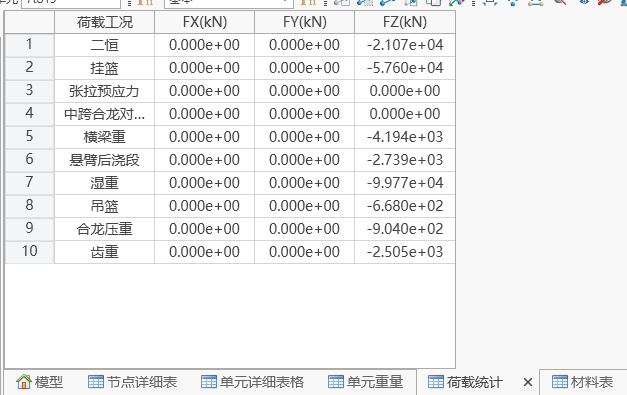

13.4 Load Statistics Table​

Function: View statistics table of activated loads (editable).

Command: Query > Load Statistics Table.

Activation Dialog Activation Dialog

Load Statistics Table Load Statistics Table

Right-click in the blank area to reselect activation items.

13.5 Material Table​

Function: View material table.

Command: Query > Material Table.

Material Table Material Table
